DeltaCorroCorro–TPC:
FM Approved insulated panel for commercial and industrial roofing applications

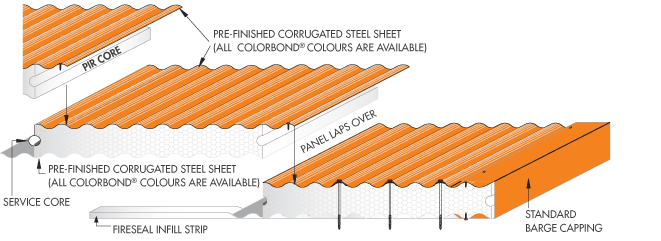

Corrugated roof profile
Panel applications
Straight roof
Curved roof
Multi-curved roof
Need help with any of our products?
Call ARCPANEL for assistance on 1300 200 004 or send an enquiry via our contact page.
Key features & benefits
- FM Approved insulated panel
- Available panel thicknesses: 85mm, 105mm, 125mm & 150mm
- R-value up to 6.6 allows you to maximise energy efficiency, reduce energy costs and your carbon footprint
- AS 5637.1 Fire Group 2
- Suitable for roof pitches from 2°
- Available in straight, curved and/or multi-curved panels
- Panel lengths 1.2m – 20m available. Panels can be joined to achieve longer runs, contact us for details
Panel dimensions
| Corro/Corro | 85 | 105 | 125 | 150 |
Overall thickness in mm
Product summary
| Panel Profile (Top/Bottom) | Corro/Corro |
|---|---|
| Min Roof Pitch | 2 deg / 5 deg |
| Max Span | 9.0m |
| Max Cantilever | 3.0m |
| Max Length | 20m |
| Min Length | 1.2m |
| Min Curved Radius | 16m |
| Thickness | 85 to 150mm |
| R-Value | R3.4 to R6.6 |
| Cyclonic Rating | – |
| Group Fire Rating | Group 2 |
| Xtreme Option | YES |
Tested, certified & trusted
ARCPANEL Roof Systems are fully certified and engineered systems. Certification provides you with peace of mind that your roof system is Building Code compliant when choosing a ARCPANEL roof for your project.Arcpanel products conform to the NCC (National Construction Code) as they meet specific performance requirements for the building application.
Full COLORBOND® colours
ARCPANEL has access to the full range of COLORBOND® standard, metallic, matt & ultra colours as well as custom colours and other finish options in Magnaflow® and UniCote® LUX. Contact ARCPANEL for availability of stocked, standard COLORBOND® and custom colours to suit your project requirements.
Using BlueScope® steel for our panel sheeting ensures quality Australian steel products and transparent and reliable warranties. Colour swatches are provided as an indication of colour only and may not be an actual representation of colour. We recommend checking your chosen colour against an actual sample of the product before purchasing.
Colour range – Classic
Colour range – Matt finish
COLORBOND® – Ultra Steel
COLORBOND® – Steel Metallic finish
* Subject to availability
Colour range ARCPANEL Xtreme (Magnaflow®)
ARCPANEL – Roof solutions to suit your project application:
