ARCPANEL – Climate resilient, energy efficient roof system
Designed for roof pitch 5°+ roofing applications, with superior span and cantilever capabilities

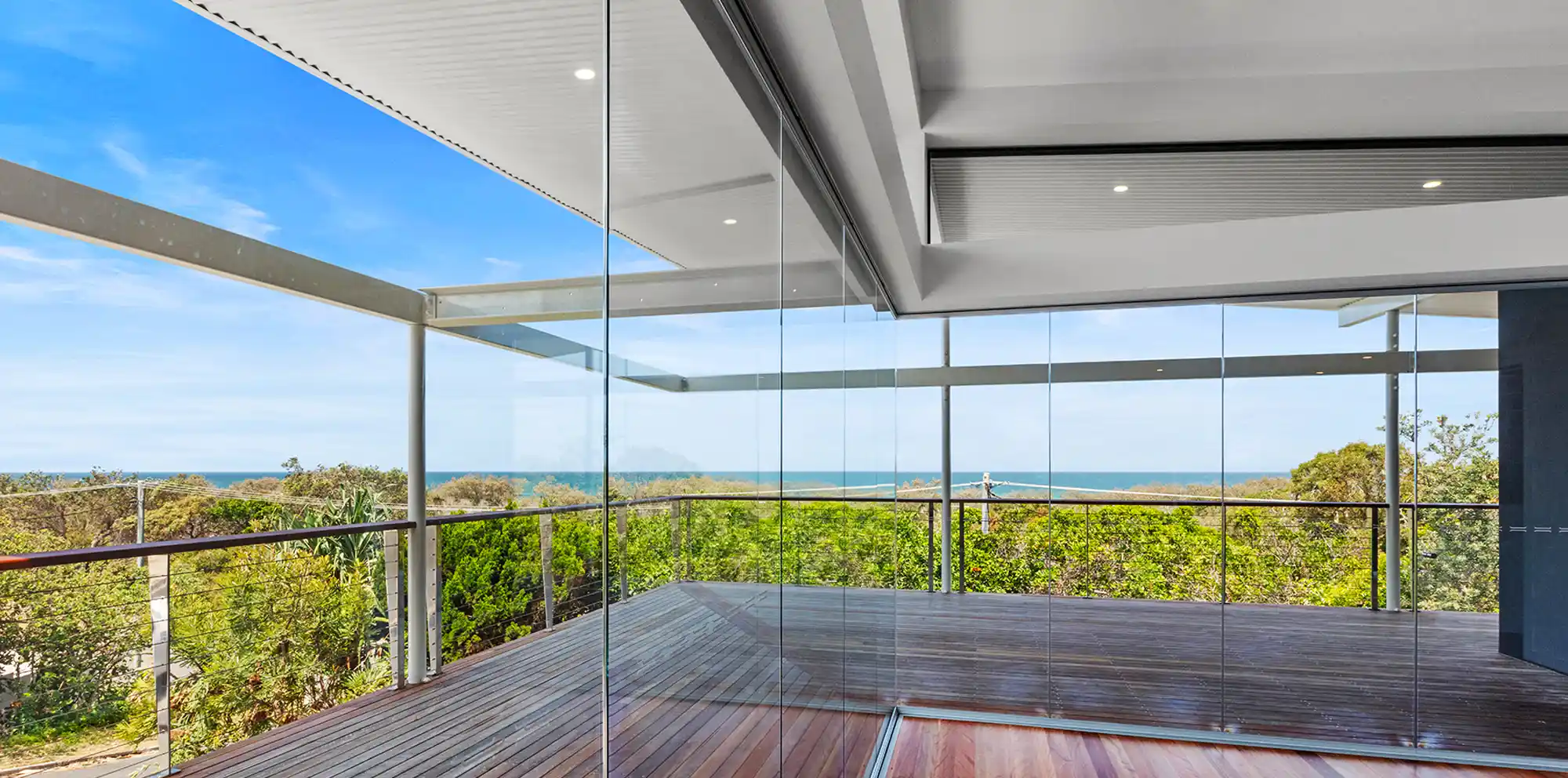

ARCPANEL Custom Panel combines aesthetic, innovative design, with high strength, durability and excellent thermal insulation. ARCPANEL panels can be curved to produce an outstanding architectural feature and provide increased interior space.The ARCPANEL Custom Panel can achieve significant cantilevers, in some applications up to half the actual back span and this unique system eliminates the need for complex, expensive roof structures. The lightweight ARCPANEL panels are easily handled on site, achieving faster, lower cost installation.
Panel configurations
Straight Roof

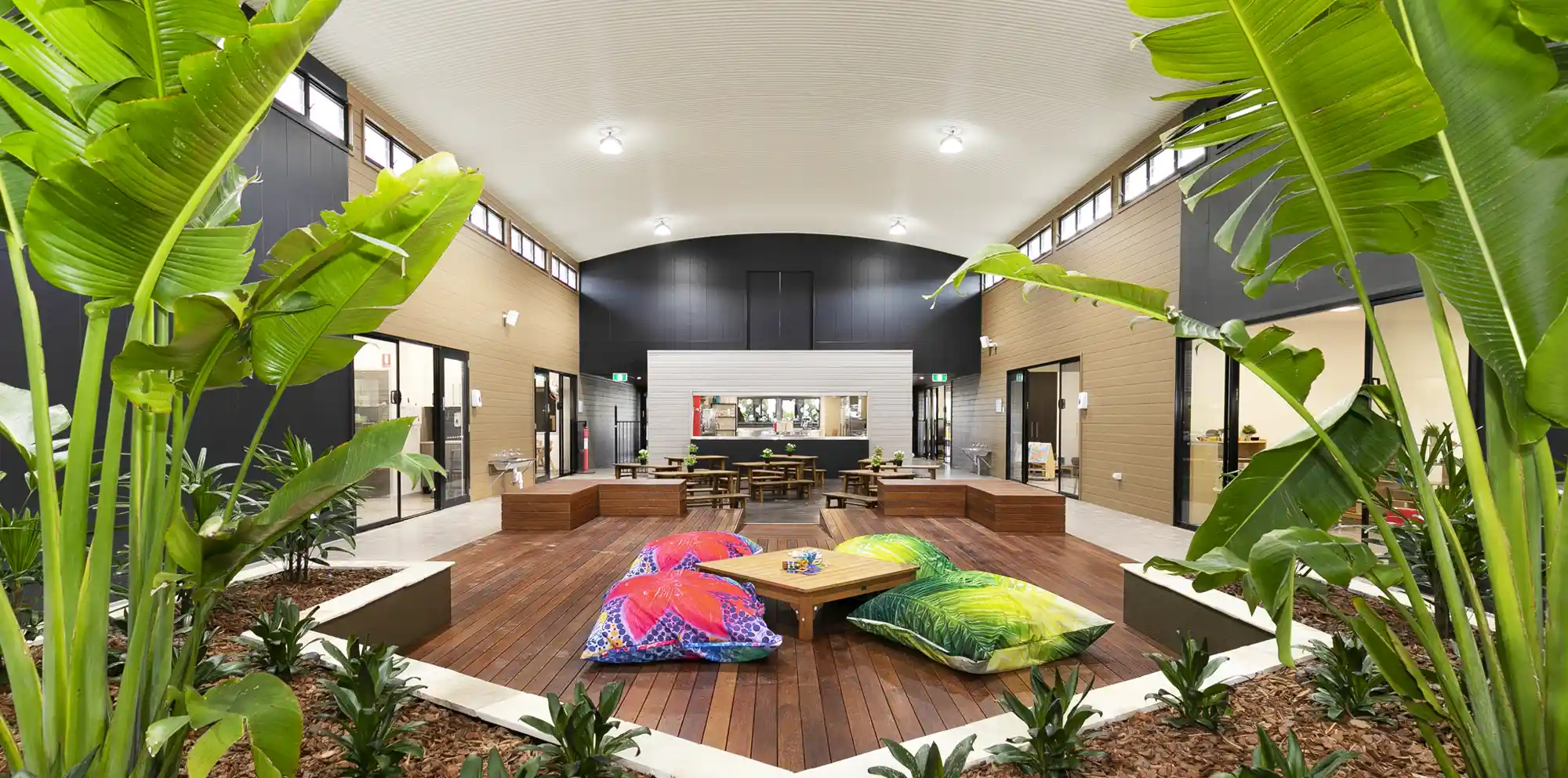

Curved Roof
Multi-Curved Roof
Bull-Nose Roof
Need help with any of our products?
Call ARCPANEL for assistance on 1300 200 004 or send an enquiry via our contact page.
Key features & benefits
- Suitable for roof pitch 5°+ applications
- Panel lengths 1.2m – 20m available. Panels can be joined to achieve longer runs, contact us for details
- Achieve up to 12.5m unsupported spans – reduce expensive support structures e.g. roof trusses & support beams
- Corrugated profile is used on both sides, reducing the need for ceilings and internal painting
- Pre-finished – extensive range of Colorbond® colours
- Straight, curved or multi-curved configurations, suitable for most architectural designs

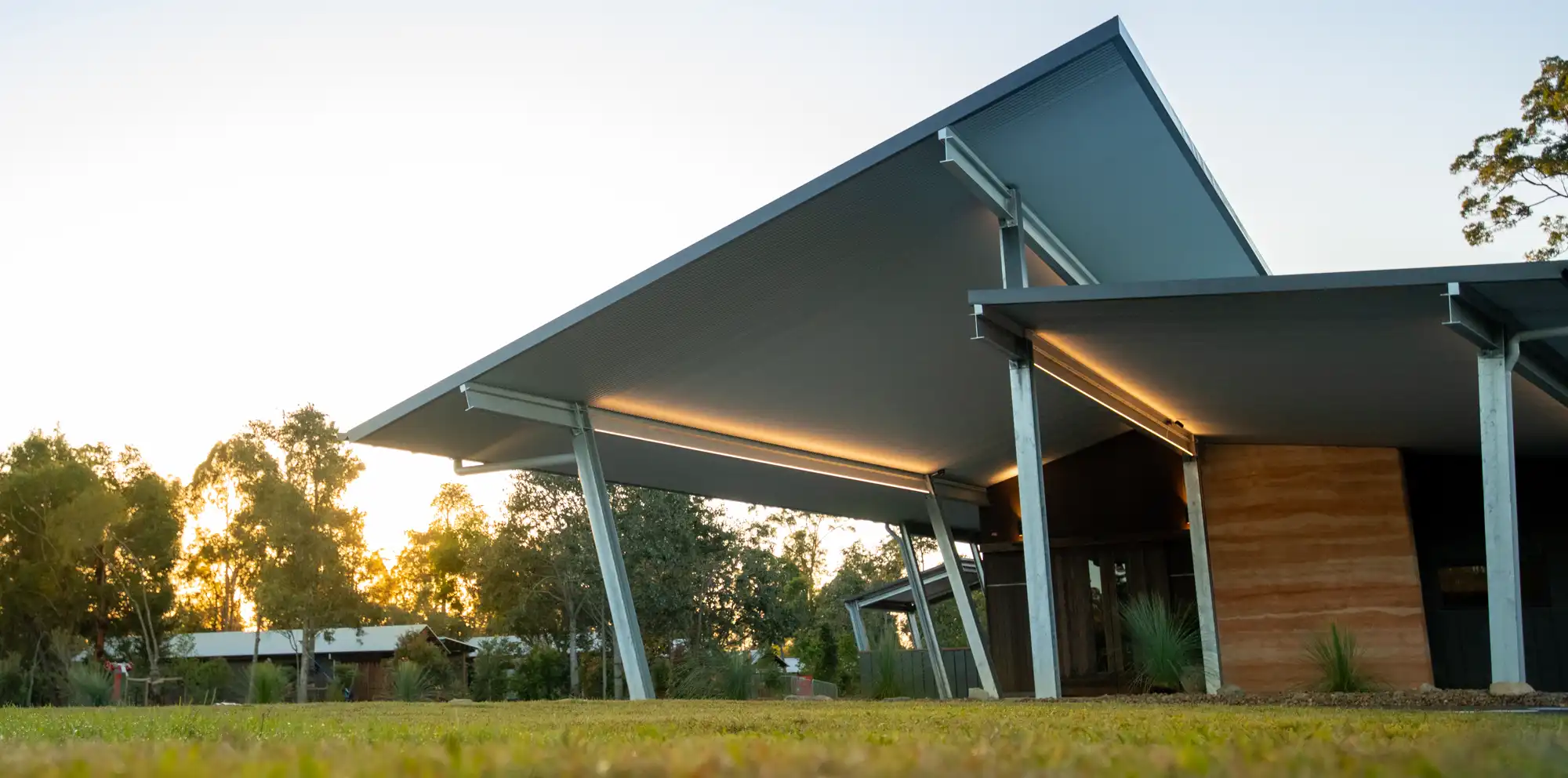

- Dependant on the design, cantilevers of up to half the actual backspan can be achieved
- Suitable for use in cyclonic wind conditions
- ARCPANEL Custom roof panel is available in Colorbond®, Colorbond® Ultra, Stainless Steel, Zincalume® & Xtreme Magnaflow
- Rapid installation makes the ARCPANEL Custom roof panel a clear winner over traditional roof construction
- Fire rated to Group 1 – roof and wall lining material
- Superior standard thermal ratings up to R6.5 are achieved using the ARCPANEL Custom roof panel
- Panels meet the requirements for live and concentrated imposed loads for roofs not accessible except for normal maintenance as per AS1170.1:2002
- Bushfire attack level BAL-12.5 to BAL-40
- Can be customised to your requirements.
- Warranty period of up to 20 years, for peace of mind.

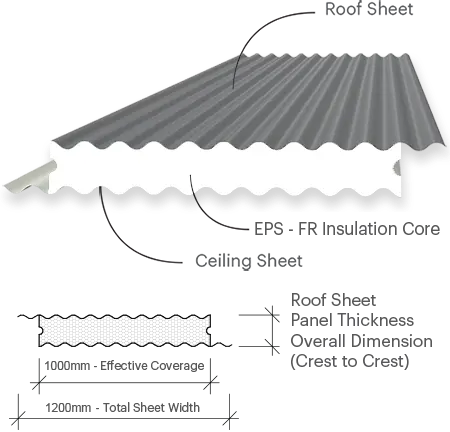

Panel dimensions
| Corro/Corro | 75 | 85 | 100 | 125 | 140 |
| 160 | 175 | 200 | 250 |
Overall thickness in mm
Product summary
| Panel Profile (Top/Bottom) | Corro/Corro |
|---|---|
| Min Roof Pitch | 5 deg |
| Max Span | 12.5m |
| Max Cantilever | 4.5m |
| Max Length | 20m |
| Min Length | 1.2m |
| Min Curved Radius | 3.0m |
| Thickness | 75 to 250mm |
| R-Value | R1.7 to R6.5 |
| Cyclonic Rating | C4 |
| BAL Rating | BAL 40 |
| Group Fire Rating | Group 1 |
| Xtreme Option | YES |
Tested, Certified & Trusted
ARCPANEL Roof Systems are fully certified and engineered systems. Certification provides you with peace of mind that your roof system is Building Code compliant when choosing a ARCPANEL roof for your project.Arcpanel products conform to the NCC (National Construction Code) as they meet specific performance requirements for the building application.
Full COLORBOND® colours
ARCPANEL has access to the full range of COLORBOND® standard, metallic, matt & ultra colours as well as custom colours and other finish options in Magnaflow® and UniCote® LUX. Contact ARCPANEL for availability of stocked, standard COLORBOND® and custom colours to suit your project requirements.
Using BlueScope® steel for our panel sheeting ensures quality Australian steel products and transparent and reliable warranties. Colour swatches are provided as an indication of colour only and may not be an actual representation of colour. We recommend checking your chosen colour against an actual sample of the product before purchasing.
Colour range – Classic
Colour range – Matt finish
COLORBOND® – Ultra Steel
COLORBOND® – Steel Metallic finish
* Subject to availability
Colour range ARCPANEL Xtreme (Magnaflow®)
ARCPANEL – Roof solutions to suit your project application:
Patio & awning roofing

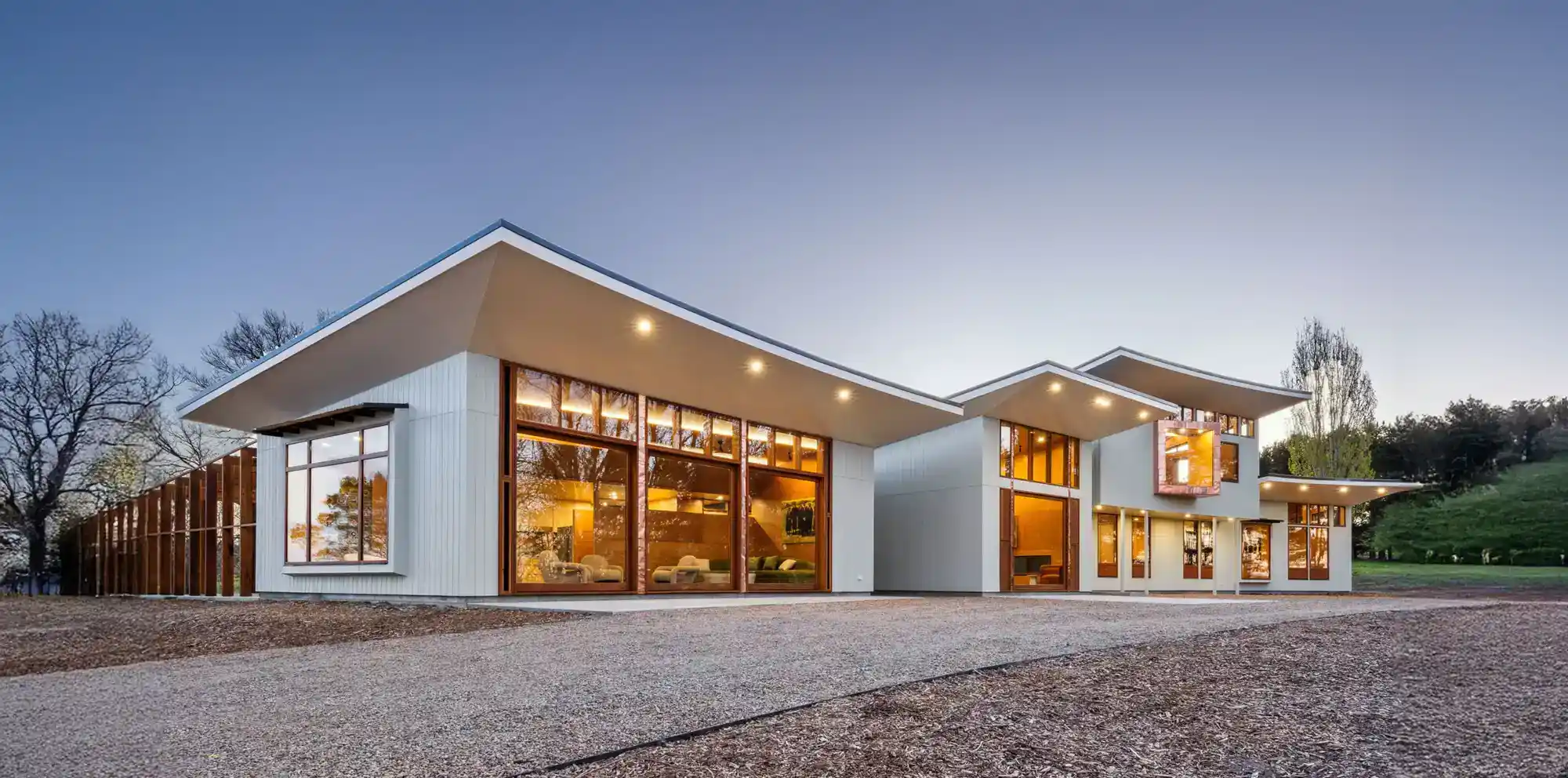

Residential roofing

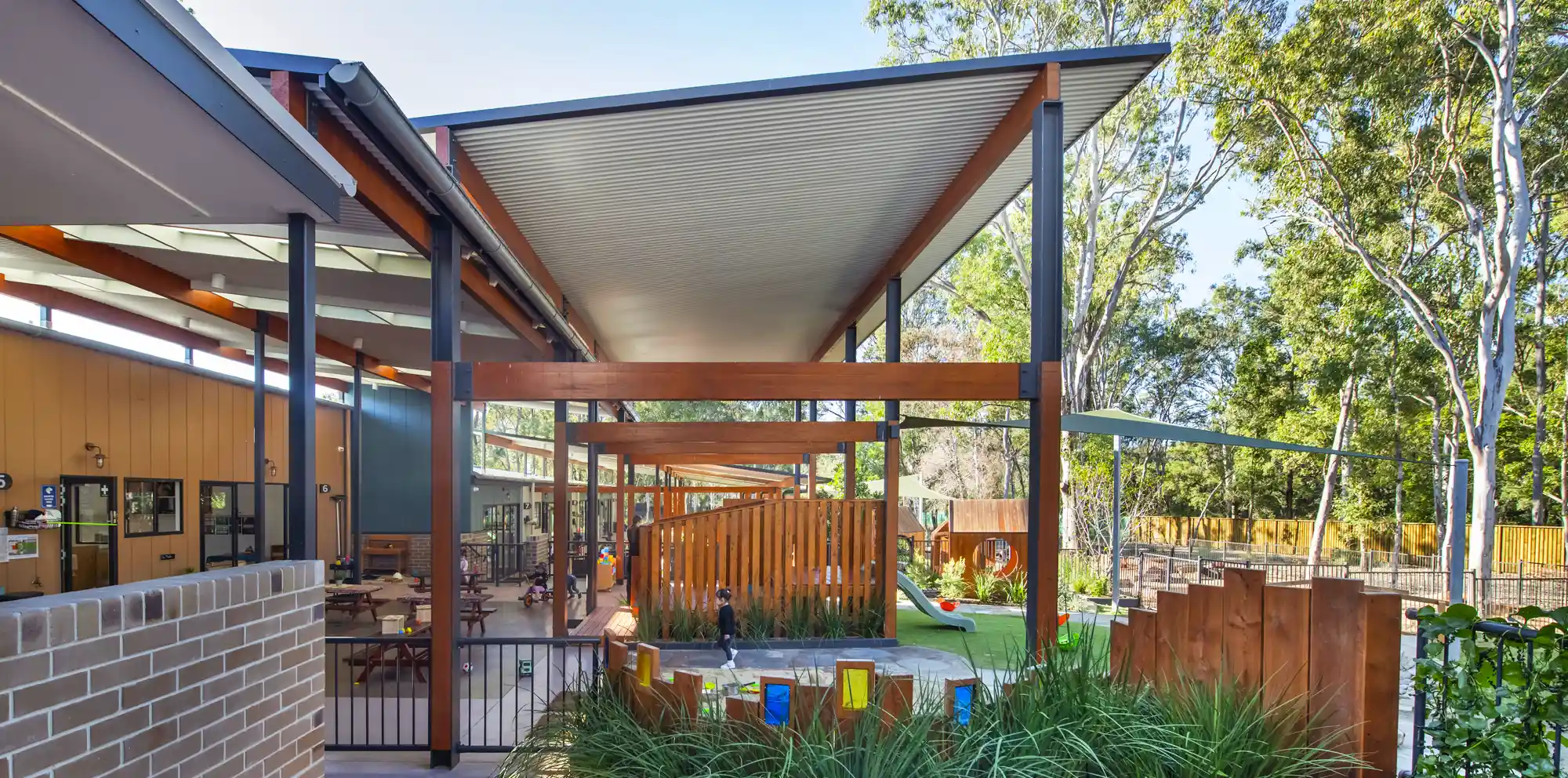

Commercial roofing
Custom Panel Technical Documentation
The latest Custom Panel electronic reference material is available online for you to view or download. To access detailed ARCPANEL technical documentation such as ‘ARCPANEL Roof Design Guides’ please click here an enter your details via the form.Hard copies of our literature are available, please contact us on 1300 200 004 and provide your contact details.
If you cannot find the technical information you are looking for, our Sales Support Team can assist you with any document enquiries – 1300 200 004.
