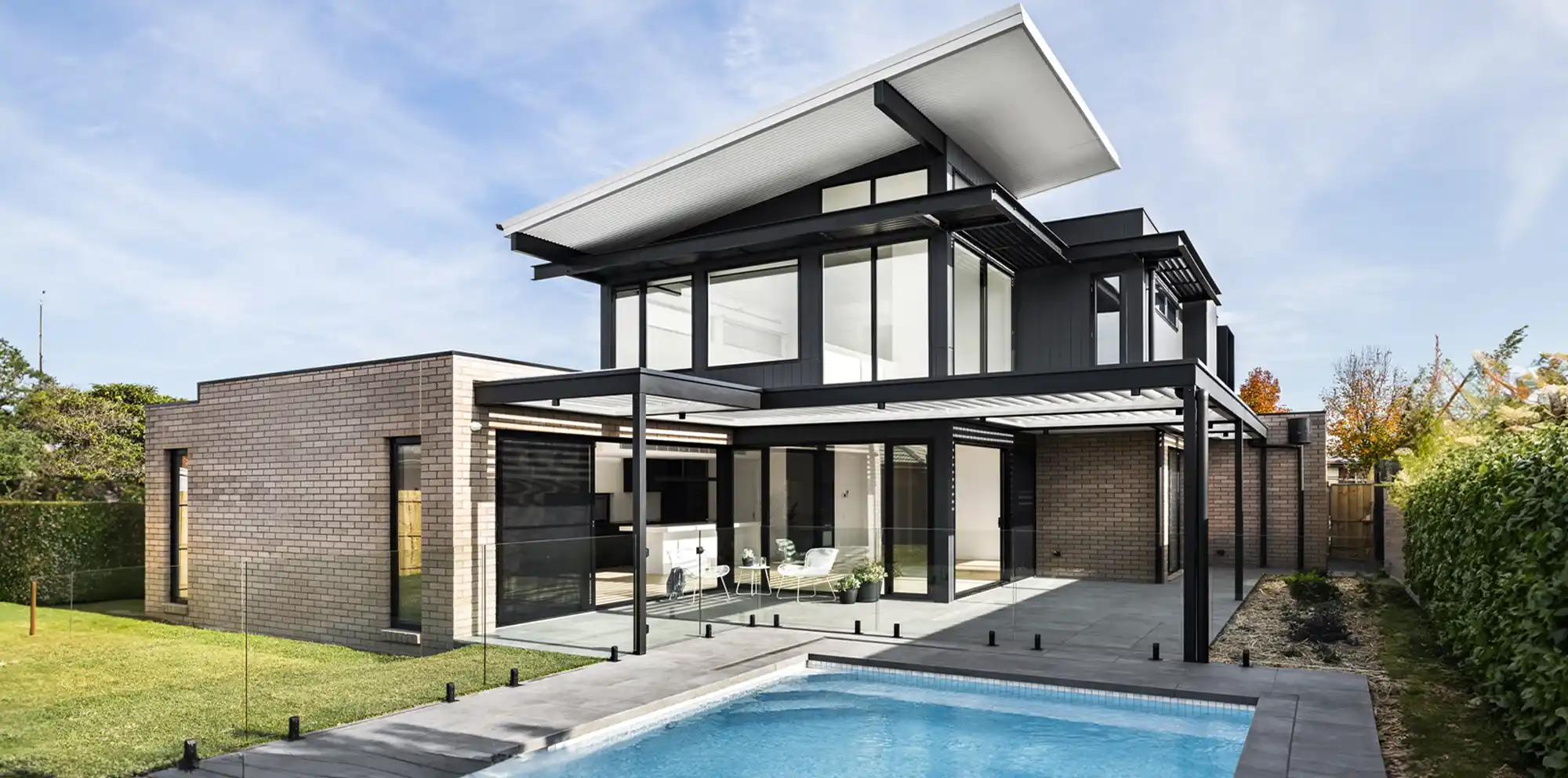

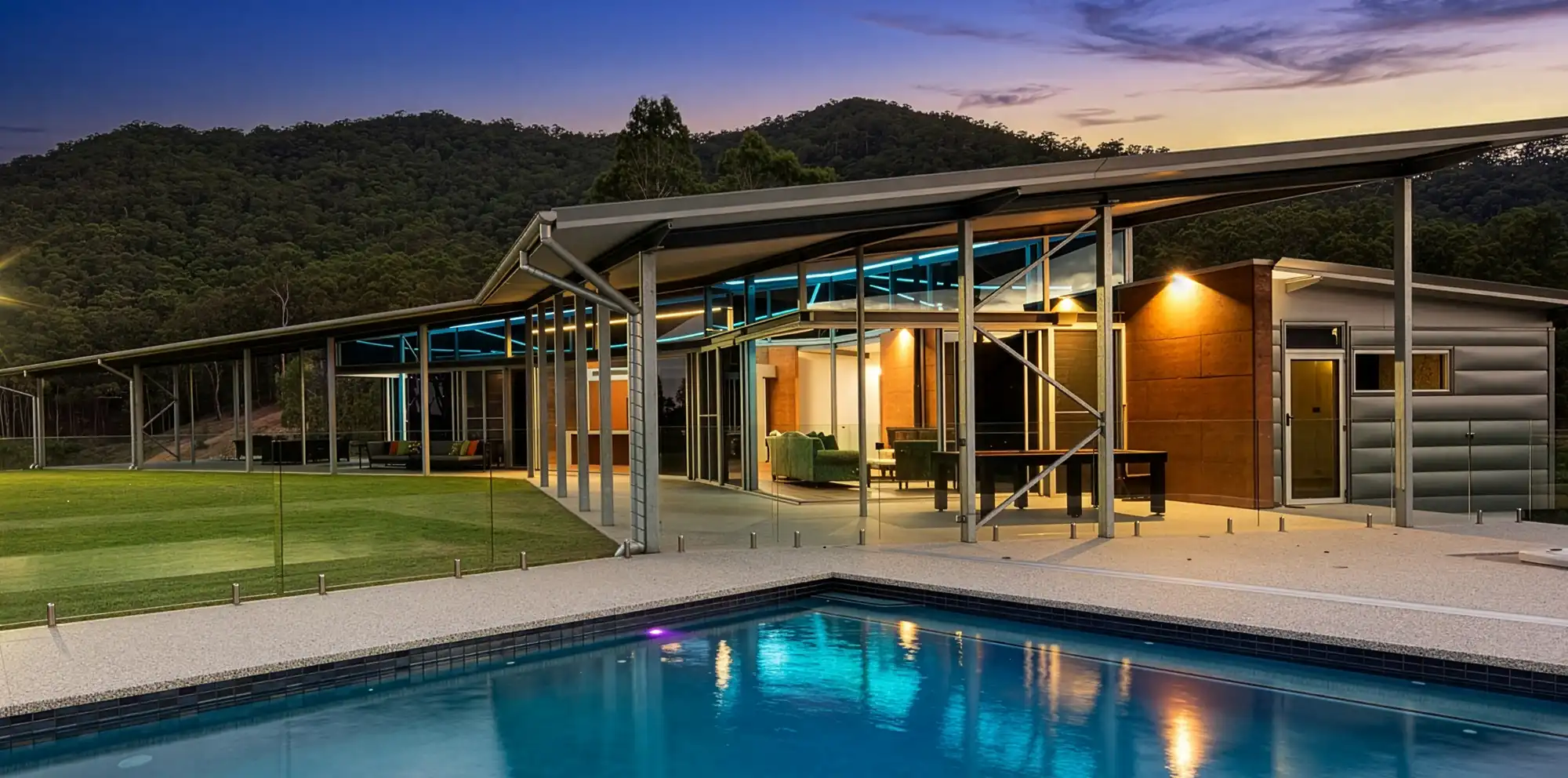

Swimming Pool Roof Aquatek The ultimate roofing system for highly corrosive, industrial and aquatic environments. CONTACT ARCPANEL Aquatic Centre Roofing Aquatek Material options suitable for marine or corrosive environments with warranties up to 20 years. CONTACT ARCPANEL Residential Roof System for Pool Aquatek Rapid installation makes the ARCPANEL Aquatek roof panel a clear winner over traditional roof construction CONTACT ARCPANEL

The ultimate roofing system for highly corrosive, industrial & aquatic environments.

The ARCPANEL Aquatek roof panel combines aesthetic, innovative design, with high strength, durability and excellent thermal insulation. ARCPANEL panels can also be curved to produce an outstanding architectural feature and provide increased interior space.

Aluminium ceiling sheet suitable for aquatic, marine, industrial or harsh environments.

The ARCPANEL Aquatek roof panel can achieve significant cantilevers, in some applications up to 40% of the actual back span and this unique system eliminates the need for complex, expensive roof structures. The lightweight ARCPANEL panels are easily handled on site, achieving faster, lower cost installation.

Corrugated Roof Profile

Corrugated Roof Profile

Trimdek Roof Profile

Trimdek Roof Profile

Visit our gallery to view a range of ARCPANEL projects

Interested in transforming your building into a contemporary architectural design? Our gallery features a range of projects that showcase the ARCPANEL Roof System in residential applications.

Need help with any of our products?

Call ARCPANEL for assistance on 1300 200 004 or send an enquiry via our contact page.

Key Features & Benefits

  • Achieve up to 8.8m unsupported spans – reduce expensive support structures e.g. roof trusses & support beams
  • Straight, curved or multi-curved configurations, suitable for most architectural designs
  • Rapid installation makes the ARCPANEL Aquatek roof panel a clear winner over traditional roof construction
  • Fire rated to Group 2 – roof and wall lining material
  • Bushfire attack level BAL-12.5 to BAL-29
  • Superior standard thermal ratings up to R6.5 are achieved using the ARCPANEL Aquatek roof panel
  • Panels meet the requirements for live and concentrated imposed loads for roofs not accessible except for normal maintenance as per AS1170.1:2002
    • Finished profile is used on both sides, reducing the need for ceilings and internal painting. Extensive range of Colorbond® colours available
    • Aluminium ceiling sheet suitable for aquatic, marine, industrial or harsh environments.
    • ARCPANEL Aquatek roof panel top sheet is available in Colorbond®, Colorbond® Ultra, Stainless Steel, Zincalume® & Xtreme (Magnaflow)
    • Panel thickness range from 75mm to 250mm.
    • Superior span & cantilever capabilities.
    • High durability & low maintenance.
    • Warranty period of up to 20 years, for peace of mind.

    Panel Applications

    Straight Roof Profile

    Straight Roof

    Straight panels can be made up to 11.3m. Panels can be joined to achieve longer runs, contact us for details.

    Curved Roof Profile

    Curved Roof

    Curved panels can be manufactured to suit your design requirements. Please contact us for further information.
    Multi-Curved Roof Profile

    Multi-Curved Roof

    Multi-curved panels can be manufactured to suit your design requirements. Please contact us for further information.

    Panel Dimensions

    Standard panel thicknesses are available (other panel thicknesses are available upon request):
    Corro/Corro 75 85 100 125 140
    Corro/Corro 160 175 200 250
    Trimdeck/Corro 90 110 130 150
    Trimdeck/Corro 175 200 210 250

    Overall thickness in mm

    Product Summary

    Panel Profile (Top/Bottom) Trimdek/Corro, Corro/Corro
    Min Roof Pitch 2 deg / 5 deg
    Max Span 8.8m
    Max Cantilever 2.3m
    Max Length 11.3m
    Min Length 1.2m
    Min Curved Radius 3m
    Thickness 75 to 250mm
    R-Value R1.7 to R6.5
    Cyclonic Rating
    BAL Rating BAL 29
    Group Fire Rating Group 2
    Xtreme Option YES

    Tested, Certified & Trusted

    ARCPANEL Roof Systems are fully certified and engineered systems. Certification provides you with peace of mind that your roof system is Building Code compliant when choosing a ARCPANEL roof for your project.

    Arcpanel products conform to the NCC (National Construction Code) as they meet specific performance requirements for the building application.

    Panel Colours

    Aquatek Roofing Colour Range
    Colour swatches are provided as an indication of colour only and may not be an actual representation of colour. We recommend checking your chosen colour against an actual sample of the product before purchasing.

    Corrosion resistant options available for coastal applications – please contact us for more details.

    Aquatek Technical Documentation

    The latest Aquatek electronic reference material is available online for you to view or download. To access detailed ARCPANEL technical documentation such as ‘ARCPANEL Roof Design Guides’ please click here an enter your details via the form.

    Hard copies of our literature are available, please contact us on 1300 200 004 and provide your contact details.

    If you cannot find the technical information you are looking for, our Sales Support Team can assist you with any document enquiries – 1300 200 004.

    Technical Library

    Aquatek Roof Design Guide
